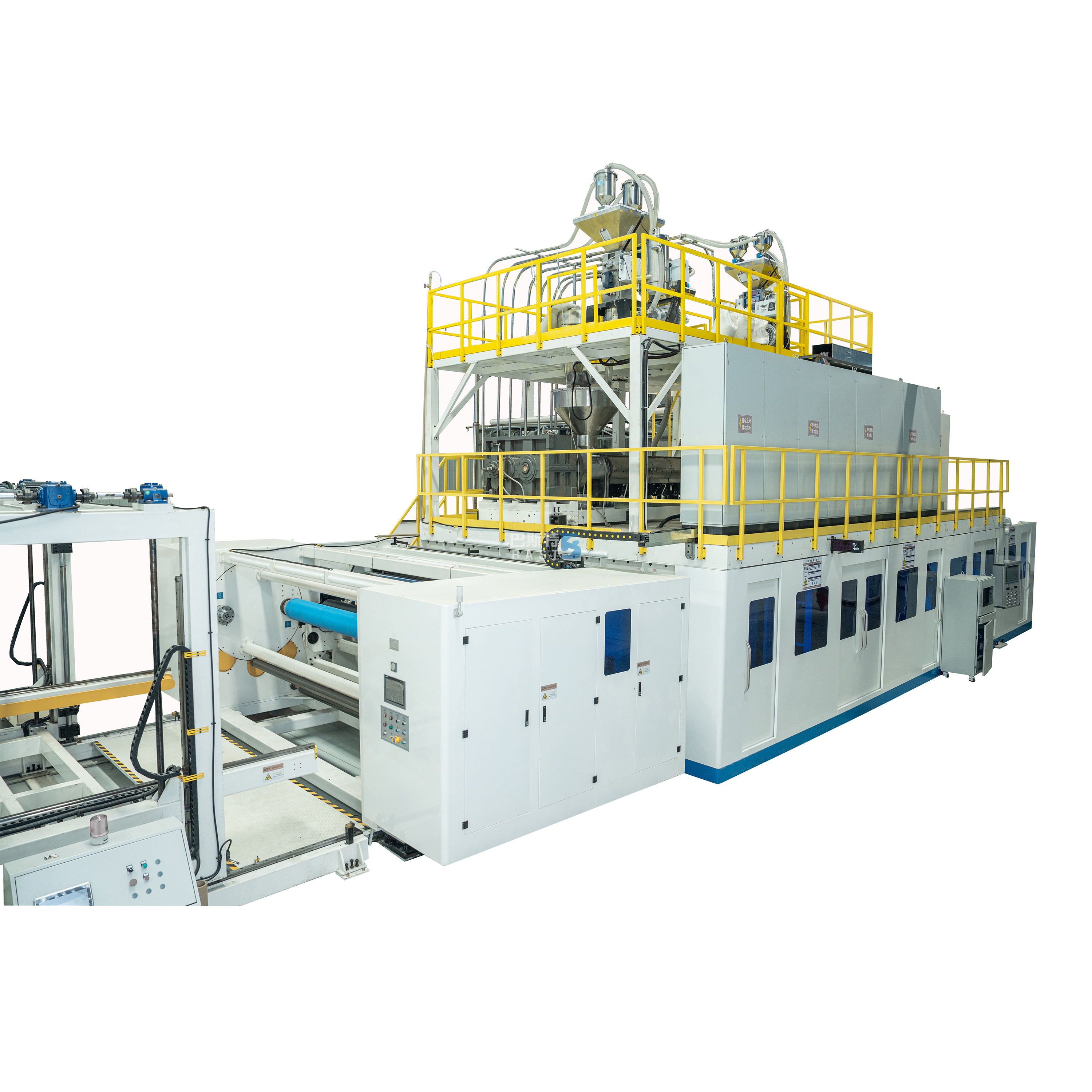

THREE OR FIVE  LAYERS CO-EXTRUSION CAST CPР FILM PRODUCTION LINE FOR APPLICATION OF PACKAGING

Equipment Characteristics

1. Extruder screw configuration: Ф100/Ф180/Ф110, Ф150/Ф150/Ф150/Ф150

2. Film structure: ABCBD, 5 layers co-extrusion

3. Die width: 350 - 5500mm

4. CPP film: 20 - 100 μm

5. Production speed: 80 - 220m/min

6. Rewind O.D.: 1000mm, 1200mm

7. Production output: 1600Kg/h

8. Weighing weight loss hopper, real-time extrusion quantity stratified metering control

9. Multi-layer co-extrusion automatic die(optional for China made or imported)

10. Europe/USA imported film surface corona treatment device
