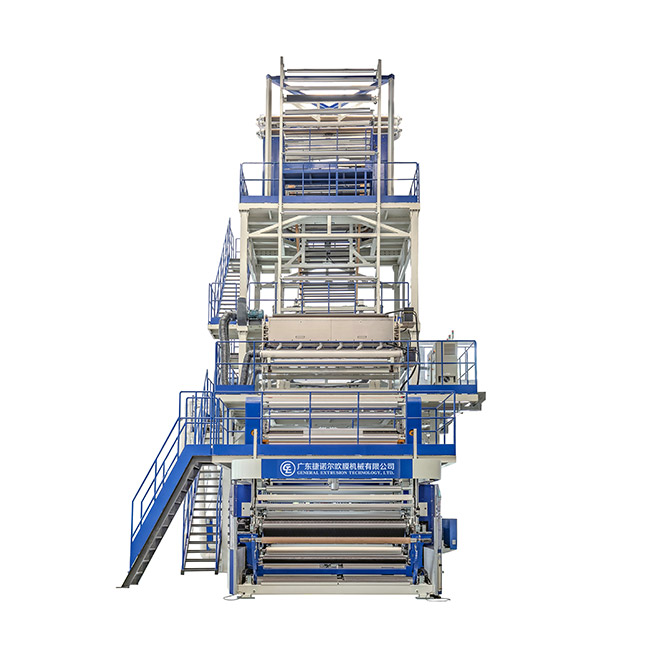

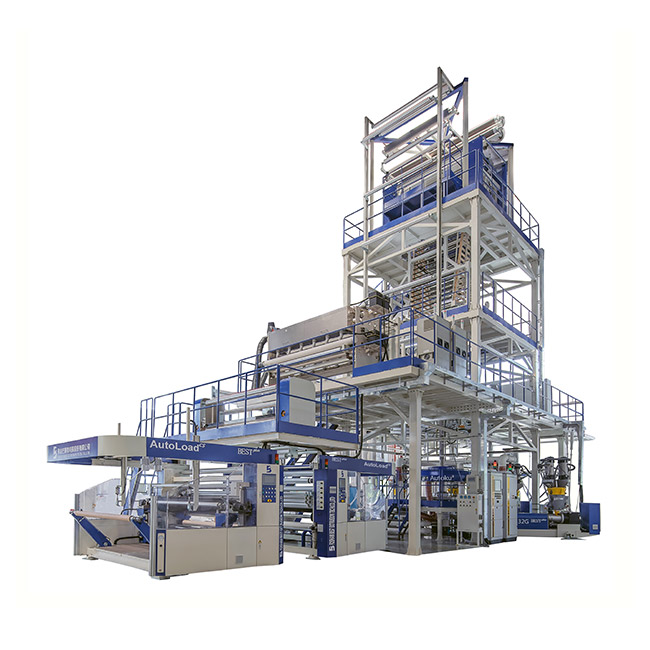

The 5-layer co-extrusion POD production line can effectively solve the shortcomings of the existing technology, realize the use and investment of more raw materials, mix and configure a variety of raw materials, complete the production requirements for enterprises to produce diversified products, and meet the actual needs of reducing the investment of valuable raw materials and reducing the cost of single area film, In addition, the multi-layer structure increases the possibility of capacity improvement, and the high output of equipment shows more remarkable excellence, which greatly increases the space for enterprises to improve efficiency and reduce cost.
Technical parameter
| Model | BF-1600-3/5 | BF-1800-3/5 | BF-2000-3/5 | BF-2200-3/5 | BF-2400-3/5 |
| Application | PE film | ||||
| Film layer | Customizable | ||||
| Film width range | 1000mm-1400mm | 1000mm-1600mm | 1200mm-1800mm | 1400mm-2000mm | 1600mm-2200mm |
| Thickness range | 0.03-0.20mm | ||||
| Deviation of Film Thickness | ≤±4%@2Sigma | ||||
| Range of Output | 250-350kg/h | 280-410kg/h | 400-530kg/h | 450-590kg/h | 500-650kg/h |
| Suitable raw material | MLLDPE,HDPE,LDPE,LLDPE | ||||
| Mechanical speed | 80-150m/min | ||||
| Max winding diameter | 800-1000mm | ||||
| Panel & PLC | 15/19"HMI & Siemens / Inovance PLC | ||||
| Extruder | Customizable | ||||
| Die Head | Customizable | ||||

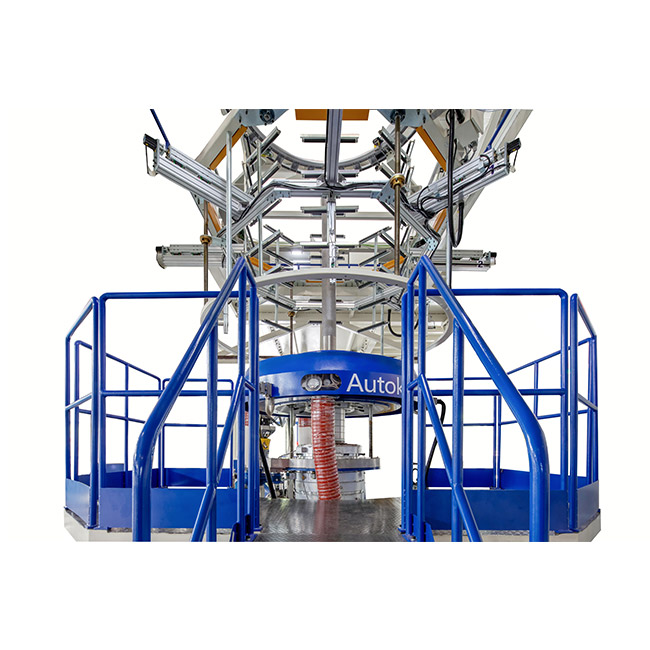

| Air ring | Customizable 3-lip counter-flow automatic airring | ||||

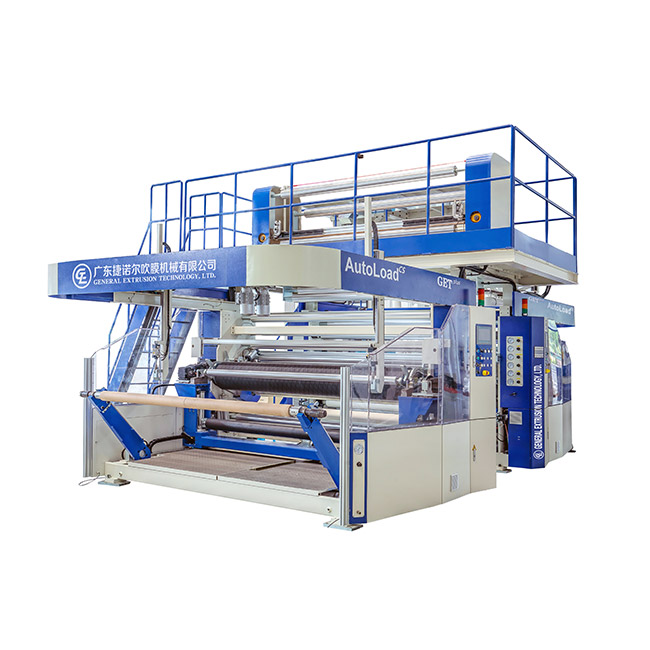

| Winder | Autoload winder | ||||
Thickness gauge Weighing Corona Guide system | Optional imported or domestic brands | ||||
