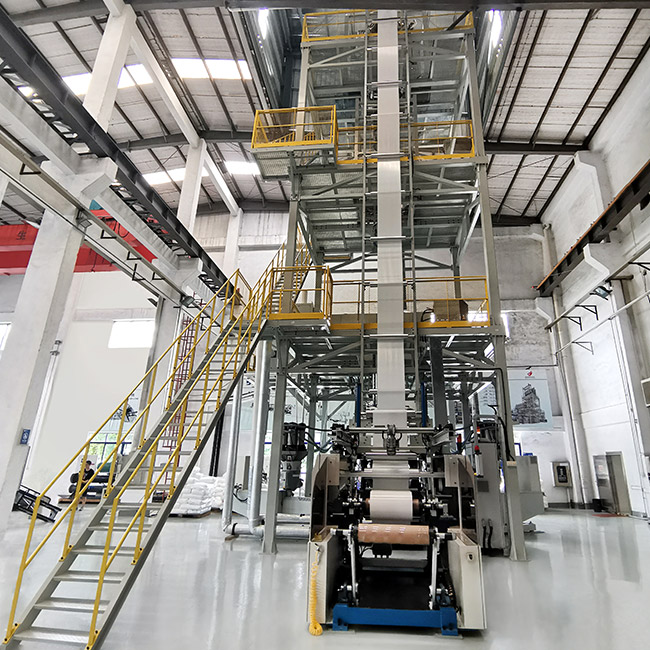

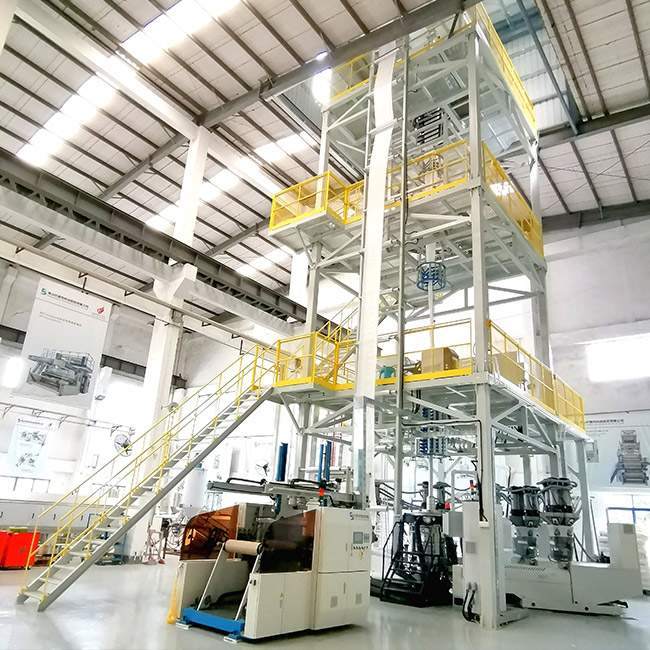

The 5-layer heavy bag technology has a thick core layer and thinner surface layer, and the sub surface layer introduces specific functions in different layers to increase the adjustability of equipment and the diversity of products through the number of redundant layers. On this basis, the overall output of the equipment will be greatly increased, which is more in line with the high-speed demand of contemporary social development.
Technical parameter
| Model | FFS-800-3 | FFS-800-5 | FFS-1600-3/5 |
| Application | FFS Heavy duty shipping sacks | Stretch hood film、FFS | |
| Film layer | 1 / 3 / 1 | 1/2/4/2/1 | Customizable |
| Film width range | 500 - 700mm | 500 - 700mm | 500 - 1200mm |
| Thickness range | 0.03-0.20mm | ||
| Deviation of Film Thickness | ≤±4%@2Sigma | — | |
| Ton energy consumption | About 280kwh/t | About 320kwh/t | — |
| Suitable raw material | MLLDPE , HDPE , LDPE , LLDPE | PE , EVA | |
| Mechanical speed | 60-80m/min | 80-100m/min | 80-100m/min |
| Max winding diameter | 1500mm | 1500mm | 600-1500m/min |

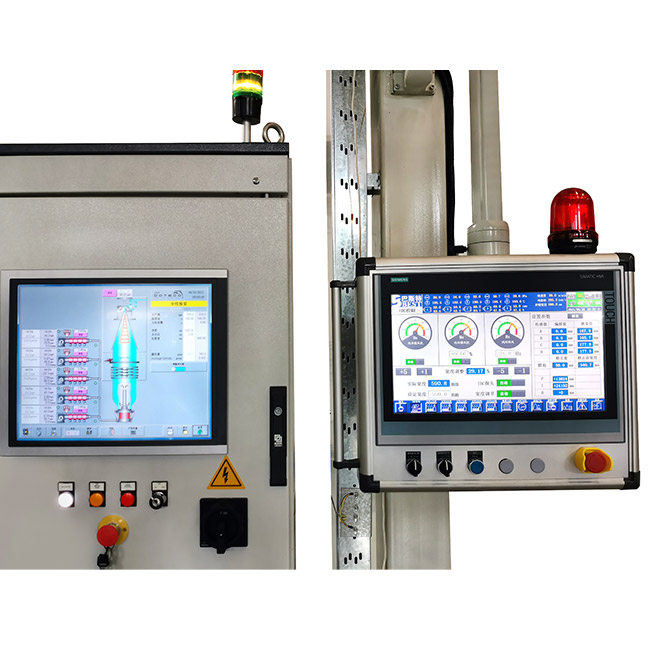

| Panel & PLC | 15/19"HMI & Siemens/Inovance PLC | ||
| Extruder | 60/75/60 | 55/55/75/55/55 | Customizable |
| Die Head | MR180-3/5 180mm 3/5-layer co-extrusion non-rotating IBC die head | MR180/350-3/5 | |
| Air ring | AutoKu3 180 3-lip counterflow automatic airring | AutoKu3 180/350 | |

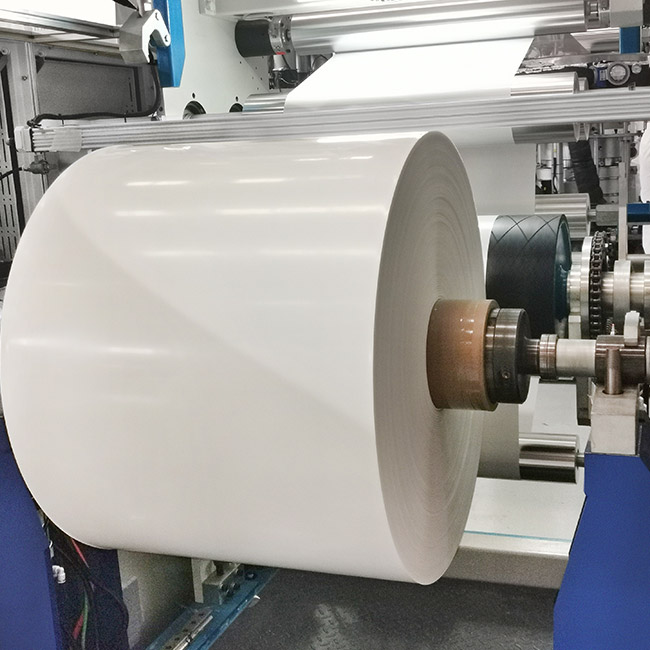

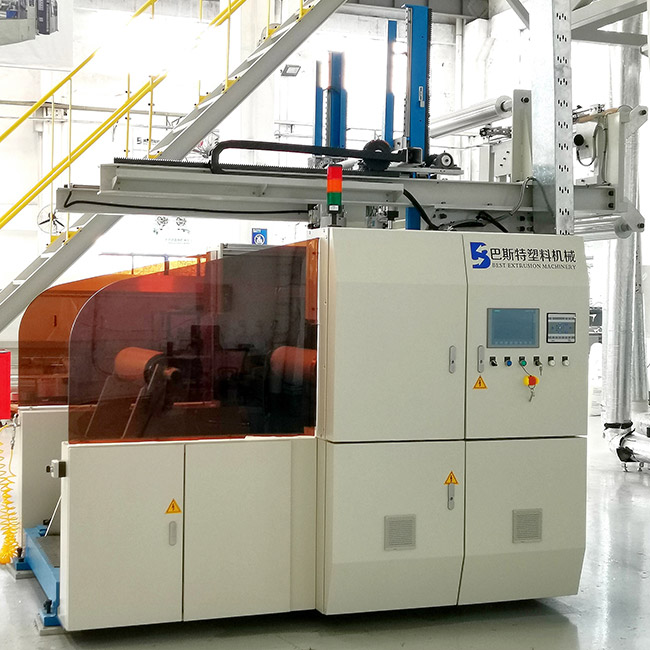

| Winder | W800 Autoload winder With automatic web guilding | W1600 Autoload winder | |
Thickness gauge Weighing Corona Guide system | Optional imported or domestic brands | ||
